Guard Booth with Restroom

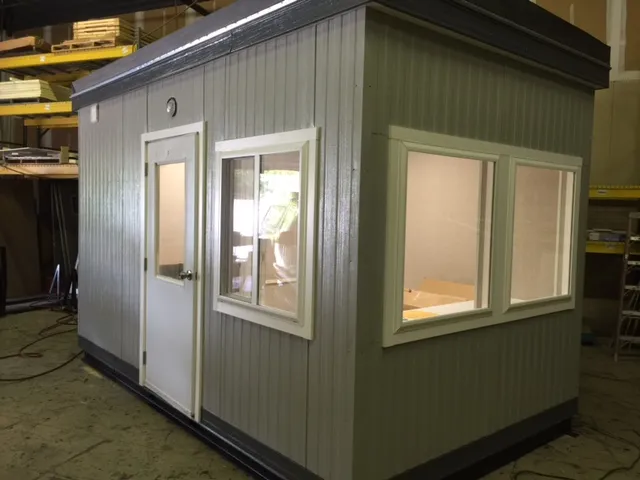

Guard Booth with Restroom Applications-8×14 Guard Booth with Restroom: Gate House with Restroom
Note: Price does not include the following: PE Sealed Drawings, State Insignia/Label Program, Concrete Pad/foundation Design.
Pricing will vary per each state and for each location due to the states corresponding codes.
Included features:
- Out-swing door is positioned on the 14′ wall

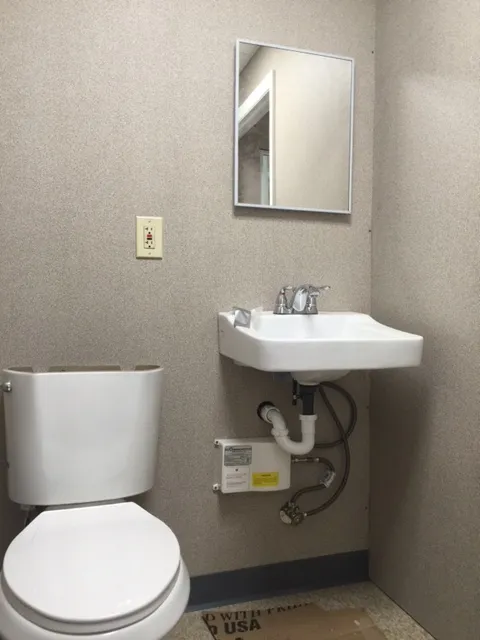

- Guard area with separate restroom
- 3000-watt wall heater with fan
- 12,000 BTU through wall air conditioner with remote
- Exterior security light over door-LED
- Heavy duty steel base frame with built in fork pockets
- Fully insulated-walls (R-13), roof (R-30), floor (R-12, Rigid)
- Aluminum tread plate floor-Guard area, VCT in restroom-(over 3/4″ plywood sub floor)
- Aluminum exterior-standard colors-lite gray with dark gray-top/bottom trim
- Out swing steel door-aluminum jamb, 1/2 glass-tempered, stainless hinges, lockset, heavy duty door closer
- Tempered insulated windows (sliding & fixed), double locking, insect screen
- T-grid type ceiling with drop in LED light-wall switch
- 100-amp Main panel with (2) duplex receptacles, dedicated circuit for heat and a/c
- Counter/desktop, 24″ x 88″-laminated white
- EPDM rubber roof with 3″/6″ overhang
- Custom Options and Additions can be added.

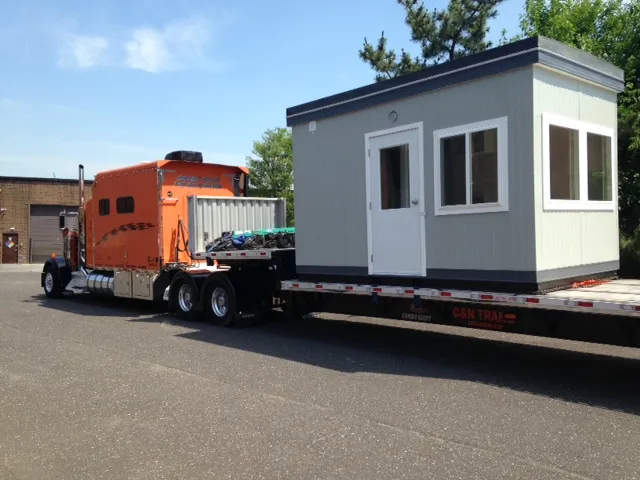

Shipping/Freight: Booth will be delivered on a Flat-bed Trailer: A forklift is required for off-loading
Tax: New Jersey sales tax will apply for all pickups; for shipments to NJ. and PA applicable sales tax will apply. All other states-tax will be the responsibility of buyer.
